ESD Rubber Mat 2mm 3mm Thickness 10e6-10e9 Ohm Surface Resistance
Λεπτομέρειες:
| Τόπος καταγωγής: | ΚΙΝΑ |
| Μάρκα: | Herzesd |
| Αριθμό μοντέλου: | HZ-30617 |
Πληρωμής & Αποστολής Όροι:
| Ποσότητα παραγγελίας min: | 10 |
|---|
|
Λεπτομερής ενημέρωση |
|||
| Υλικό: | καουτσούκ νιτρίνης | Πάχος: | 2mm/3mm |
|---|---|---|---|
| Επιφανειακή αντίσταση: | 10E6-10E9 OHM | Υπό αντίσταση στρώματος: | 10E3-10E6 OHM |
| Μέγεθος: | 1*10M, 0,6*10M, 1,2*10M ανά ρολό | Αντίσταση όγκου: | 10E7-10E10 ohm*cm |
| Ηλεκτροστατικό φορτίο τριβής (επιφάνεια): | <100V | Ηλεκτροστατικό φορτίο τριβής (αγώγιμο): | <50V |
| Επιλογές χρωμάτων: | Πράσινο, γκρι, μπλε ή προσαρμοσμένο | Τύπος επιφάνειας: | ματ/γυαλιστερό |
| Μοντέλο: | HZ-30617 | Κανονικό μέγεθος: | 1m*10m; 1,2μ*10μ |
| Στρώμα στατικής διάχυσης: | Αντίσταση επιφάνειας 107-109OHM | Αγώγιμο στρώμα: | Αντίσταση επιφάνειας ≤106ohm |
| Υπηρεσία επεξεργασίας: | Τομή | ||
| Επισημαίνω: | ESD rubber mat 2mm thickness,ESD rubber mat 3mm thickness,ESD rubber mat surface resistance |
||
Περιγραφή προϊόντων

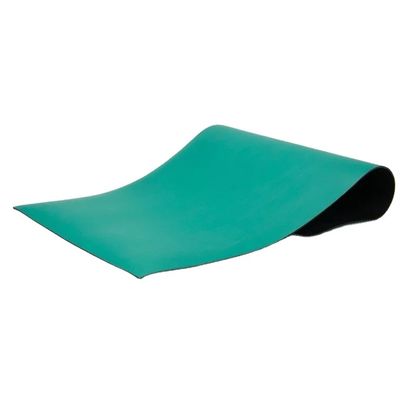

ESD Table Mat Grounding Conductive Rubber Matting
HerzESD offers a comprehensive range of ESD table mats in flexible rubber and vinyl materials, as well as rigid options, designed for static control in high-tech industries. Our mats feature resistance to hot solder and chemicals with a two-layer construction: a static dissipative top layer and a black conductive bottom layer.
Product Specifications
| Model | HZ-30617 |
|---|---|
| Thickness | 1.8mm, 2mm, 3mm |
| Normal Size | 1m*10m; 1.2m*10m |
| Color | Green/Grey/Blue |
| Surface | Matt/Glossy |
| Surface Resistance | ≤10e6ohm |
| Volume Resistance | 10e7-10e10 ohm*cm |
Key Features
- Static dissipation layer with surface resistance: 107-109ohm
- Friction electrostatic charge: <100V
- Conductive layer with surface resistance: ≤106ohm
- Friction electrostatic charge: <50V
- Volume Resistance: 107-1010 ohm*cm

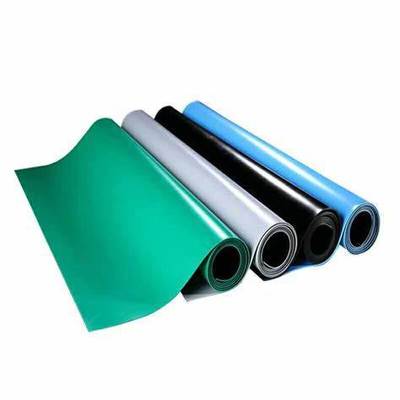

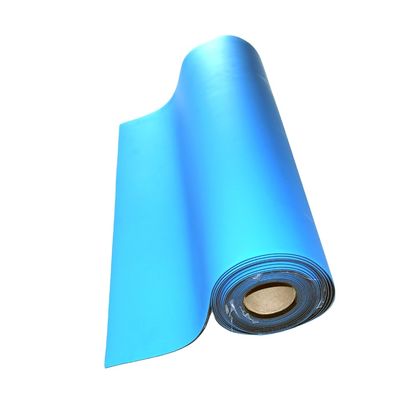

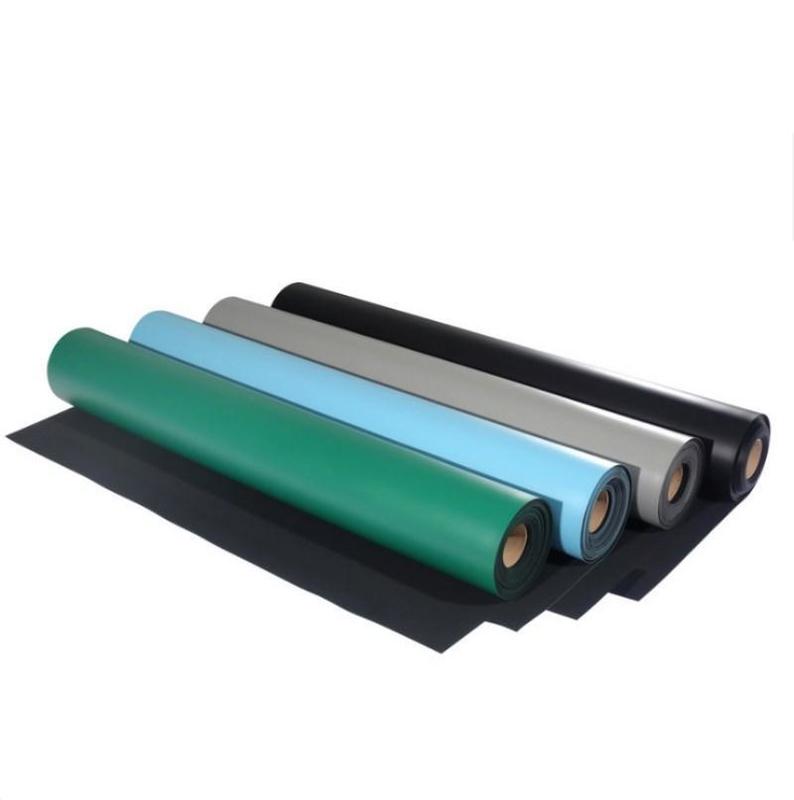

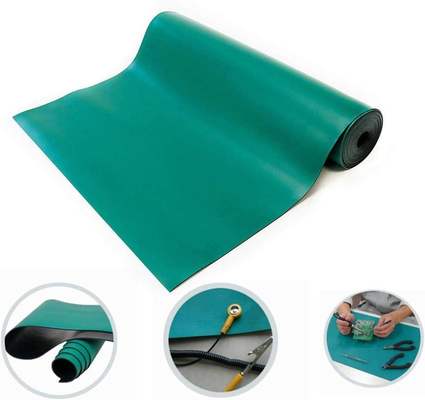

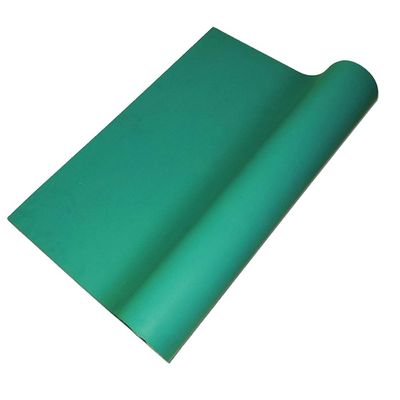

Product Images
Packaging & Shipping
Company Information
Shanghai Herzesd Industrial manufactures ESD products through meticulous planning and technological excellence. Our products combine quality, innovation, and precision technology, with continuous upgrades to enhance security features. We maintain rigorous quality control with a dedicated team ensuring optimal performance of all ESD accessories.
Frequently Asked Questions
Why do you need ESD protection for your production line?
Electronic components sensitive to electrostatic discharges (ESD) can be damaged when exposed to excessive current or impact energy. These components, typically semi-conducting elements, are often damaged through human handling. Humans can accumulate several thousand volts simply by walking. While discharges become noticeable at 2000-3000V, many ESD components are damaged at much lower levels. Implementing ESD-safe procedures according to IEC 61340 or ANSI S2020 standards forms the foundation of protective work and quality assurance. We offer comprehensive ESD solutions including workstations, chairs, flooring, clothing, footwear, packaging, and testing equipment.
Why choose HerzESD?
HerzESD is committed to providing accurate information and optimal ESD solutions, even when it means challenging established market opinions. We pride ourselves on delivering only correct ESD solutions through reliable manufacturing and international partnerships. Our focus remains on continuous improvement in static electricity control solutions.
