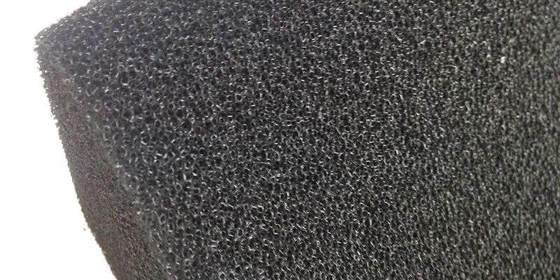

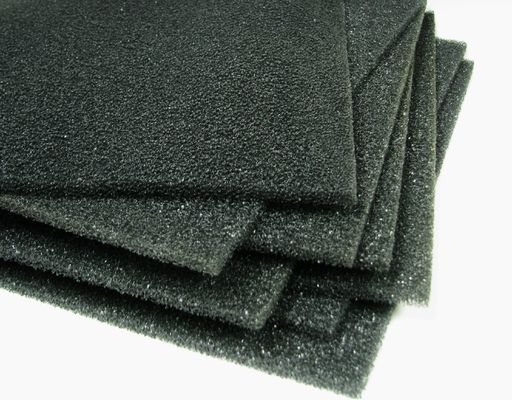

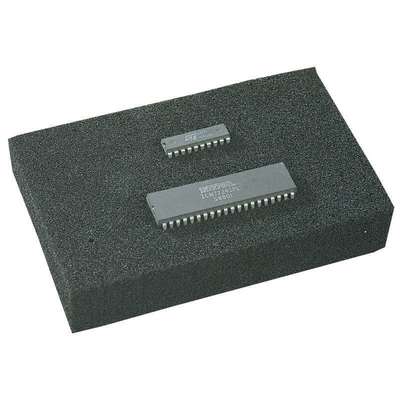

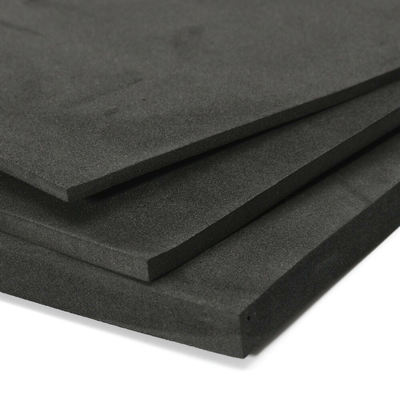

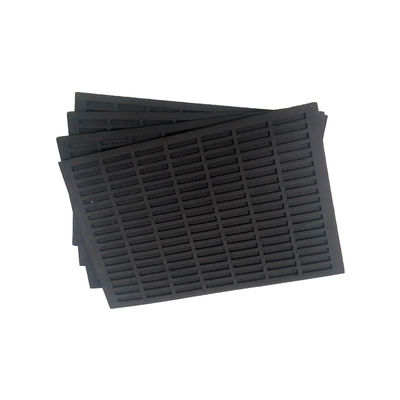

Customized ESD Foam Sheet with 103-106 Ω, 106-109 Ω, and 109-1011 Ω Surface Resistance for Electronic Component Packing
Λεπτομέρειες:
| Τόπος καταγωγής: | Zhejiang, Κίνα |
| Μάρκα: | Herzesd |
| Αριθμό μοντέλου: | HZ-1203 |
Πληρωμής & Αποστολής Όροι:
| Ποσότητα παραγγελίας min: | 100 |
|---|
|
Λεπτομερής ενημέρωση |
|||
| Υλικό: | PU, EVA/PU/IXPE | Τύπος: | Αφρός |
|---|---|---|---|
| Χρώμα: | Ο Μαύρος, ροζ | Πάχος: | 2-500mm |
| Επιφανειακή αντίσταση: | 103-106 Ω, 106-109 ω, 109-1011 Ω | Πυκνότητα: | 25-27Kg/m3 |
| Αντίσταση όγκου: | 103-106 ohm.cm, 106-109 ohm.cm, 109-1011 ohm.cm | Μοντέλο: | HZ-1203A, HZ-1203S, HZ-1203D |
| Αγώγιμος τύπος: | Αγώγιμο, ημι-αγώγιμο, διαλυτικό | Επιφανειακή αντίσταση: | 103-106 ohm, 106-109 ohm, 109-1011 ohm |
| Επισημαίνω: | 103-106 Ω ESD Foam Sheet,106-109 Ω Antistatic Foam,109-1011 Ω Conductive Foam |
||
Περιγραφή προϊόντων
Antistatic EVA Foam Sheet Customized Protective Packaging Materials Conductive Foam Roll
Technical Specifications
| Items | Conductive | Semi-conductive | Dissipative |
|---|---|---|---|
| Model | HZ-1203A | HZ-1203S | HZ-1203D |
| Color | Black | Black | Black/Pink |
| Density | 25-27Kg/m3 | ||
| Surface Resistivity | 103--106 ohm | 106--109 ohm | 109--1011 ohm |
| Volume Resistivity | 103--106 ohm.cm | 106--109 ohm.cm | 109--1011 ohm.cm |
Why ESD Protection is Essential for Your Production Line
Electronic components or assemblies at risk from electrostatic discharges (ESD) are among those sensitive elements which can be destroyed or damaged if the permitted levels of current or impact energy are exceeded. As a rule, these are always semi-conducting components and most are also thick- and thin-film construction elements.
This type of construction element is mostly damaged through human mishandling. A human-being can charge several thousands of volts just by walking. A discharge can be felt by humans from approximately 2000-3000 V, a current which is already well above the 'tolerance level' of many ESD components.
Before buying or implementing ESD safe products one needs implementing an ESD safe procedure according to the ESD standards IEC 61340 or ANSI S2020 which is the foundation of ESD preventive protective work and a greater guarantee of quality assurance.
Comprehensive ESD Protection Solutions
Besides our anti-static conductive ESD workstations, we offer an extensive range of:
- Antistatic ESD chairs
- Antistatic ESD cleaning & maintenance products
- Antistatic ESD clothing
- ESD shoes and footwear
- Antistatic ESD flooring & table mats
- ESD safe packaging solutions
- ESD personal grounding materials
- Anti-static ESD protective storage & warehousing systems (EPA)
- ESD storage boxes
- ESD test & measuring equipment
- ESD trainings and support
- ESD audits
Why Choose HerzESD
HerzESD strives to serve our customers better by offering correct and clear explanatory answers. We try to do so, even when informing our customers better means contradicting more established but sometimes flawed opinions on the market.
At HerzESD we pride ourselves on ensuring the only correct ESD solution. To continue this vision we need reliable ESD manufacturers and suppliers on which we can always count. HerzESD is a solid partner and together with our international partners we stay strong and vigilant in regards to possible improvements or new solutions in tackling and controlling static electricity.
